DXD-50-2000Y
Automatic Liquid (paste State) Packing Machine
PRODUCT PARAMETERS
Introduction
Technical parameter
Flow Path

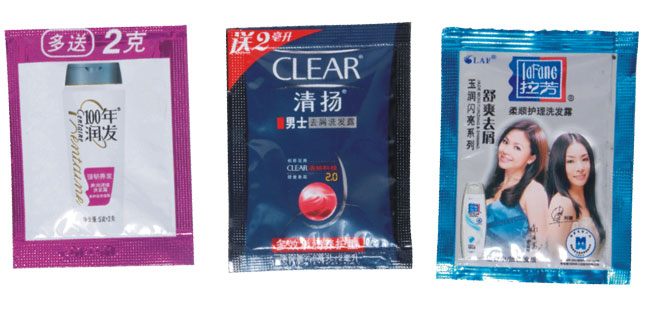

Sample
Pro Details
Pro Video
<
>
SJIII-S series paste-state packaging machine adopts computer controll system completlyj it can finish the production��s process auto, matically such as making bags, counting, filling, sealing, cutting, printing batch number; making the rip, and so on, It also adopts the adjustable quantificational plunger pump and it special uses for something which easy to drawbench or dript as shampoo.
Sealing type: the bag can be sealed on three sides, four sides, or pillow.
Packaging material: paper/pe pet/al foil/penylon, pe, tea leaf filtering paper �� Etc.
Option: hot stamp ribbon coder (color style, ink wheel style); micro-co, mputer controller

Mode

DXD-50Y

DXD-100Y

DXD-300Y

DXD-500Y

DXD-1000Y

DXD-2000Y

Capacity

35-50pcs/min

35-45pcs/min

20-35pcs/min

20-30pcs/min

20-30pcs/min

15-20pcs/min

Packing range

1-50ml

1-100ml

50-300ml

50-500ml

100-1000ml

100-2000ml

Power

1.3Kw 220V

1.3Kw 220V

1.8Kw 220V

1.8Kw 220V

2.0Kw 220V

3.0Kw 220V

Length of bag (max)

160mm

180mm

200mm

220mm

280mm

360mm

Width of bag (max)

100mm

140mm

150mm

180mm

220mm

280mm

Dimension(LxWxH)

1400x1000x1800mm

1400x1000x1800mm

1700x1100x2100mm

1700x1100x2100mm

1800x1200x2350mm

1800x1200x2350mm

Weight

300kg

350kg

400kg

450kg

500kg

600kg


The quality and performance of the equipment are constantly improved. The appearance, technical parameters and features of the machine are subject to change without prior notice
