High-speed Reciprocating Four-side Sealing Packing Machine
Technical parameter
Flow Path
Pro Details
Pro Video

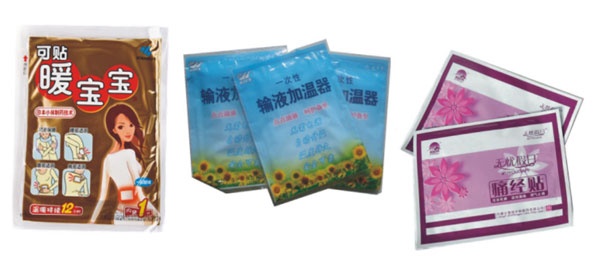

This machine is the company scientific research personnel in the multi-function pillow section, on the basis of fully automatic packaging machine, and absorb foreign advanced packaging technology, strictly in accordance with the requirements of��GMP��specification for admin stration of warm cooling gel and similar product packaging design and development of products of domestic initiation. The machine set, loading products, batch number printing, quadrilateral sealing, tear open mouth, cutting and packing the finished product delivery all at once. Around the whole machine adopts the manmachine interface, with automatic photoelectric the edition, six group before and after the struggle, temperature control, sealing side pressure device ensure product sealing effect. The machine successfully trial-produced, over warm paste and similar products can only use the manual packing of history, and has solved the product packaging untight seal technical difficulties The machine superior performance and beautiful packaging, high technology content Is the first selection of automatic packaging equipment.

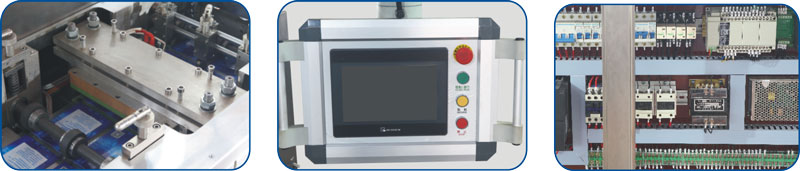

1.Programmable control:
adopt PLC programmable controller; make the machine running program.
2.Touch screen display:
host speed, set the bag length, the actual bag length, the amount of compensation, the output will be displayed on the screen, be clear at a glance.
3.Packaging bag length automatic adjustment:
length of transformation can be directly set by the touch screen, by the computer program automatically adjust the length, very convenient and quick.
4.Two-way compensation for standard:
imported photoelectric detection color code, by PLC computer program combined with two-way compensation institution, automatic tracking, for the rapid and accurate.
5.About photoelectric struggle:
to make the bag on both sides of alignment, smooth and beautiful.
6.Collect waste device:
driven by magnetic powder control, can make the packing material tension balance, the machine running stable, sealing side pressure device ensure product sealing effect. Sealing way to extend sealing side to reinforce this is does not have the characteristics of the square packing machine at home



Production capacity


Film width


Length of bags


Product size

(Max. width) 200mm,(Max. height) 20mm



Rated voltage


Total power


Overall dimensions


The quality and performance of the equipment are constantly improved. The appearance, technical parameters and features of the machine are subject to change without prior notice
